1.2mm And 1.4mm Carbon Fiber Strip/Laminate/Plate

1.2mm And 1.4mm Carbon Fiber Strip/Laminate/Plate

HM-1.2T and HM-1.4T are prefabricated (pultruded) carbon fiber reinforced sheets, used for structural reinforcement of concrete, masonry, metal or wood structures. Glue on the load-bearing components, they are reinforced with epoxy glue (M-120CP).

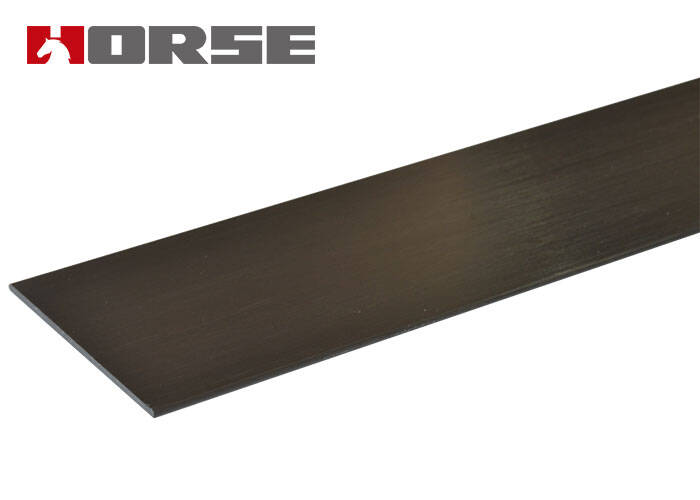

carbon fiber plate horse construction

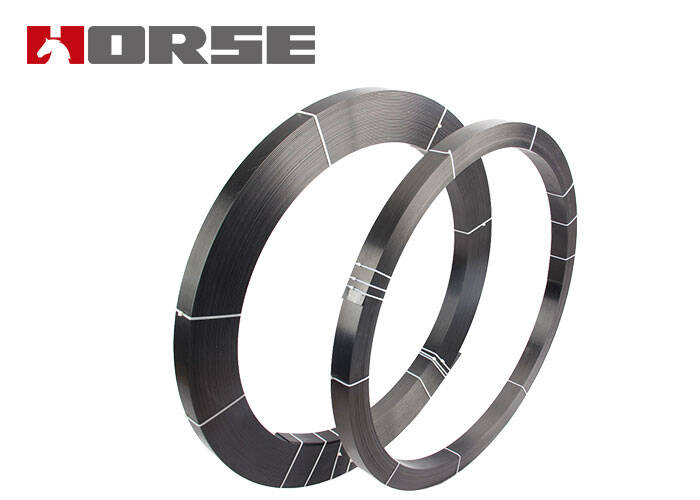

carbon fiber plate horse construction

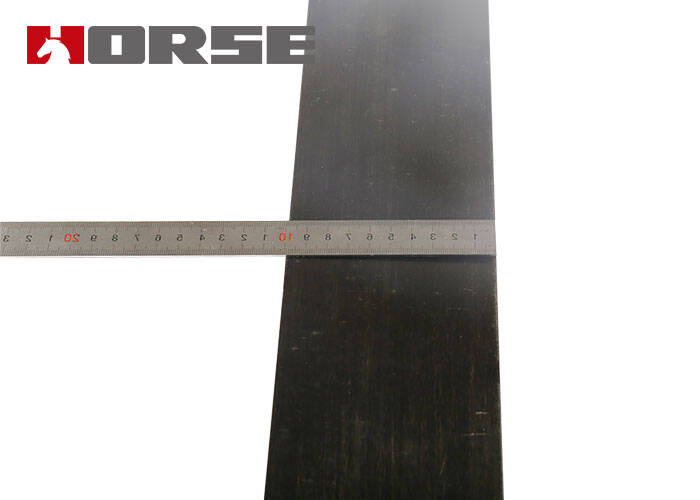

carbon fiber plate horse construction




Horse CFRP Plate's Date Sheet

HM-1.2T Technical Data Sheet.pdf

HM-1.4T Technical Data Sheet.pdf


ItemHM-1.2T Carbon Fiber PlateHM-1.4T Carbon Fiber PlateHM-2.0T Carbon Fiber PlateHM-3.0T Carbon Fiber Plate
Thickness(mm)1.21.42.03.0
Length(m)100100100100
Width(mm)50、10050、10050、10050、100

Density(g/cm3)

1.6


Base
Carbon fiber reinforced polymer with an epoxy resin matrix
Shelf LifeUnlimited (no exposure to direct sunlight)
ColorBlack carbon fiber plate
Tensile StrengthMean Value3100MPa
Design Value2600MPa
Modulus Of Elasticity

Mean Value

165,000MPa
Design Value160,000MPa

Elongation at Break

1.7%
Thickness1.2mm, 1.4mm, 2.0mm, 3.0mm
Temperature Resistance＞300°   F(＞150℃）
Fiber Volumetric Content＞68%
Density0.058 lbs./in 3 (1.6g/cm3)


Characteristics of HM-1.2T and HM-1.4T carbon fiber plate

  • Very high tensile strength

  • No corrosion

  • Low dead weight and low installation thickness

  • Deliverable measurements (no need to overlap or connect)

  • Easy to apply, also suitable for ceiling work

  • Excellent fatigue performance

  • Simple, flexible and economical reinforcement technology

  • May cross with simple flakes

  • Very short structure using interrupt

  • No noise or vibration during installation



Application of HM-1.2T and HM-1.4T carbon fiber strip


Increase in carrying capacity

-Increased payload on beams and bridge decks

-Changes in the use of buildings

-Installation of heavy machinery or equipment in industry

-Stability to vibration and oscillation



The following structural system changes

-Remove supports or walls

-Create an opening (funnel) in the board

-Increased shock resistance

-Design or construction defects



Repair defects in structural elements

-Corrosion and cross-section reduction of steel bars in concrete

-Aging of building materials

-Damage to the structure after fire, earthquake, impact, etc.



Improve conditions of use

-Reduce crack opening

-Reduce deformation

-Reduce stress in steel

-Reduce fatigue effect
