Horse Construction menawarkan rangkaian lengkap material perkuatan struktur dengan dukungan teknis, dukungan dokumentasi, dukungan produk, dukungan perangkat lunak, dukungan proyek.
Horse Construction is the largest and most professional manufacturer and supplier of carbon fiber laminate in China.
Horse Construction has two carbon fiber laminate production lines, used on German Dornier looms which is the world's best weaving machine. Daily output of 2,000 meters of carbon fiber laminate and an annual output of 600,000 meters carbon fiber laminate.
Horse Construction's carbon fiber laminate have incredible performance and value, including high strength, light weight, corrosion resistance, excellent impact resistance, low cost and high throughput manufacturing.
Horse can produce carbon fiber laminate of different specifications for various structural strengthening projects. Our carbon fiber laminates have competitive prices, excellent impact strength and high performance. Through our ISO 9001 certified manufacturing and quality system and ASTM report, we have a relatively high product quality.

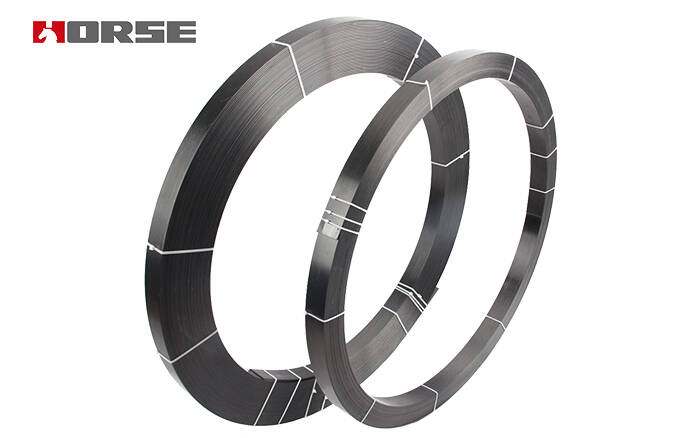

Horse Construction HM Carbon Fiber Laminate Specification
Carbon fiber reinforced polymer with an epoxy resin matrix
Shelf Life
Unlimited (no exposure to direct sunlight)
Color
Black carbon fiber laminate
Tensile Strength
Mean Value
3100MPa
Design Value
2600MPa
Modulus Of Elasticity
Mean Value
165,000MPa
Design Value
160,000MPa
Elongation at Break
1.7%
Thickness
1.2mm, 1.4mm, 2.0mm, 3.0mm
Temperature Resistance
＞300° F(＞150℃）
Fiber Volumetric Content
＞68%
Density
0.058 lbs./in 3 (1.6g/cm3)
What Makes Horse Carbon Fiber Laminate Unique?
HM carbon fiber laminate are manufactured under very high quality control, in dust free and environmentally controlled facilities, where temperature and humidity are well controlled. As a result, Horse Construction products easily meet very high standards in both domestic and international markets.
Use of automatic temperature-controlled heating system during manufacturing results in maintaining a uniform pultrusion process, and therefore producing CFRP laminate that have reliable stable pulling strength.
Autonomous large-ton hydraulic traction system fully guarantees the precise control of tension and line speed, ensuring the flatness and straightness of the carbon fiber laminate without any internal residual stress.
Self-developed carbon fiber constant creel makes each carbon fiber yarn smooth before dipping into the epoxy bath, no scratches after the glue application, and the fibers are distributed evenly, to ensure the integral curing of CFRP laminate .
Hubungi Kami
Produk Teranjum Horse Construction
Anda dapat menemukan segala yang Anda butuhkan di sini. Percayalah dan cobalah produk - produk ini, Anda akan menemukan perbedaan yang besar setelah itu.
Pelat polimer bertulang serat karbon (CFRP) Horse adalah pelat komposit yang diawetkan terlebih dahulu, yang diikatkan ke struktur sebagai perkuatan eksternal dengan epoksi HM-120CP.
Sistem Laminasi CFRP prategang Kuda (sistem CFRP pasca-tegang) mencakup perangkat penahan dan laminasi serat karbon yang dirancang khusus untuk jembatan, bangunan, dan tulangan struktur baja.
Perekat laminasi serat karbon Horse HM-120CP adalah perekat berbasis epoxy komponen ganda dengan daya rekat yang kuat, daya geser, dan daya anti-penuaan. Ini adalah epoxy yang digunakan untuk merekatkan laminasi serat karbon untuk penguatan struktural.
