Unidirectional Carbon Fiber Properties - Horse Construction

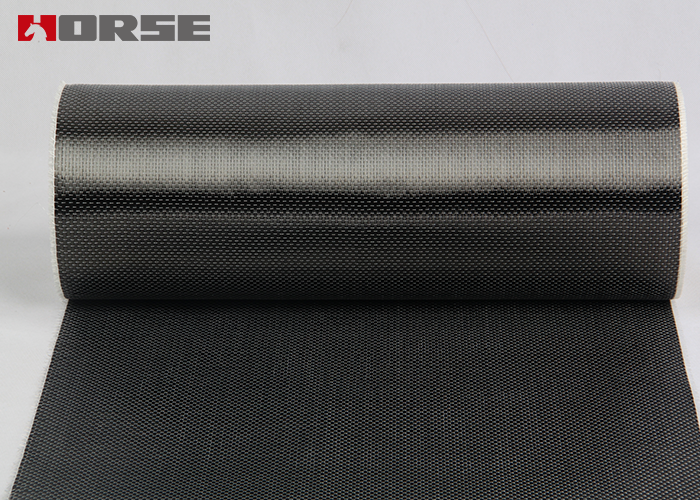

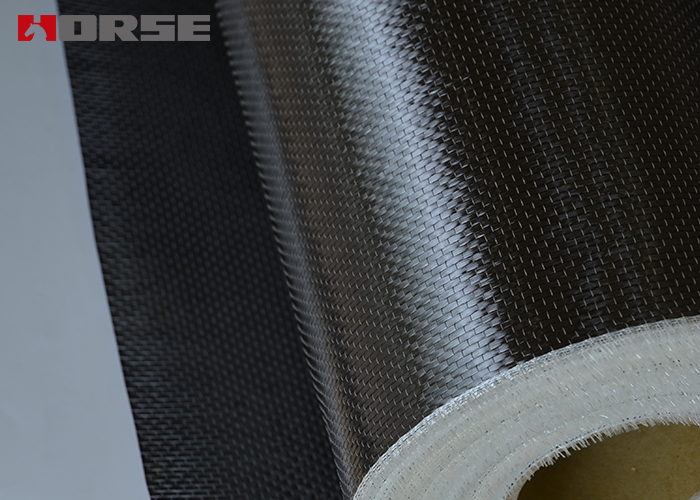

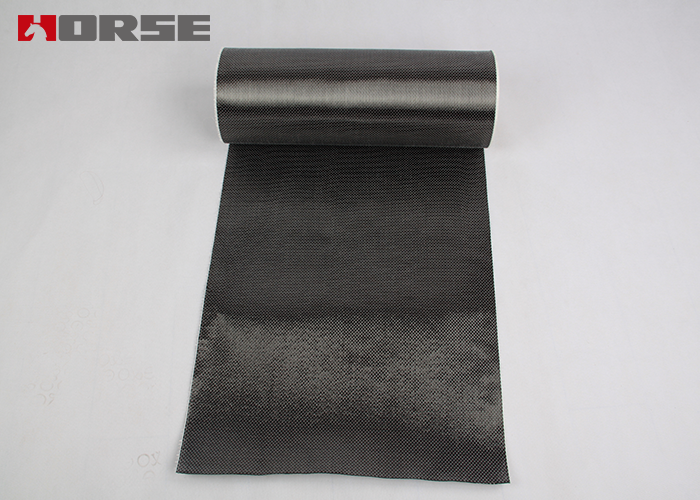

horse construction unidirectional carbon fiber

Product features of unidirectional carbon fiber cloth

High strength, low density, thin thickness, and basically do not increase the weight and cross-sectional size of the reinforcement member. It has a wide range of applications, and is widely used in the reinforcement and repair of various structural types and structural shapes such as buildings, bridges and tunnels, as well as seismic reinforcement and structural reinforcement of nodes. The construction is convenient, no large machinery and equipment, no wet work, no hot fire, no on-site fixed facilities, the implementation of state workers occupies less space, and the construction work efficiency is high. High durability, because it will not rust, it is very suitable for use in high acid, alkali, salt and atmospheric corrosion environments.

Unidirectional Carbon Fiber Properties - Horse Construction

Unidirectional Carbon Fiber Typical Data

Storage Condition	Store dry at 40°-95° F（4° -35°）
Shelf Life	50 years
Color	Black
Primary Fiber Direction	0°（unidirectional carbon fiber fabric）
Arear Weight	HM-20 unidirectional carbon fiber fabric	200g/㎡ (5.84 oz./sq.yd.)
	HM-23 unidirectional carbon fiber fabric	230g/㎡ (6.72 oz./sq.yd.)
	HM-30 unidirectional carbon fiber fabric	300g/㎡ (8.76 oz./sq.yd.)
	HM-45 unidirectional carbon fiber fabric	450g/㎡ (13.14 oz./sq.yd.)
	HM-53 unidirectional carbon fiber fabric	530g/㎡ (15.48 oz./sq.yd.)
	HM-60 unidirectional carbon fiber fabric	600g/㎡ (17.52 oz./sq.yd.)

Unidirectional Carbon Fiber Typical Fiber Properties

Dry Fiber Typical Properties
Standrad Value of Tensile Strength	4900MPa
Tensile Elastic Modulus	234500MPa
Elongation	1.7%

Laminate Fiber Typical Properties
Standrad Value of Tensile Strength	3800MPa
Tensile Elastic Modulus	234500MPa
Elongation	1.7%
With Concrete	Concrete Damaged: ≥2.5MPa
Densiy	1.8g/cc(0.065lbs.in³）
Norminal Fiber Thickness	HM-20 unidirectional carbon fiber fabric	0.111mm(0.0044in.)
	HM-23 unidirectional carbon fiber fabric	0.128mm(0.0050in.)
	HM-30 unidirectional carbon fiber fabric	0.167mm(0.0065in.)
	HM-45 unidirectional carbon fiber fabric	0.251mm(0.0097in.)
	HM-53unidirectional carbon fiber fabric	0.295mm(0.0114in.)
	HM-60 unidirectional carbon fiber fabric	0.333mm(0.0130in.)
