12K UD Carbon Fiber Fabric - Horse Construction

Solusi

Horse Construction menawarkan rangkaian lengkap material perkuatan struktur dengan dukungan teknis, dukungan dokumentasi, dukungan produk, dukungan perangkat lunak, dukungan proyek.

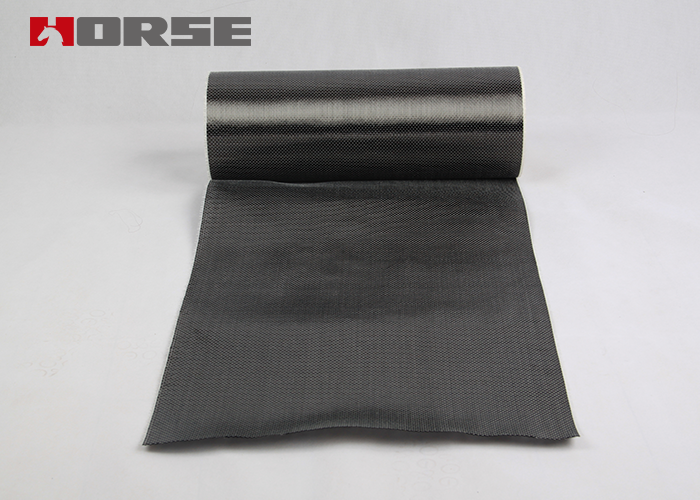

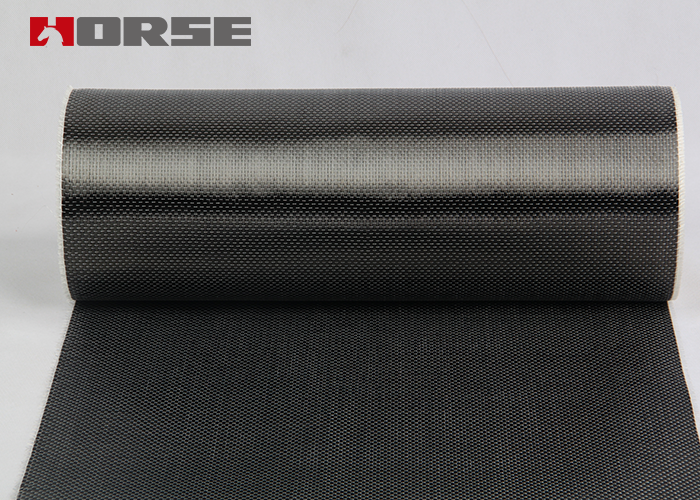

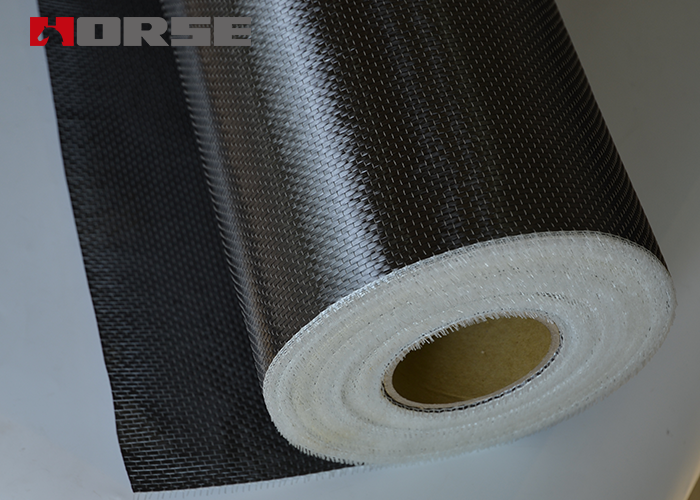

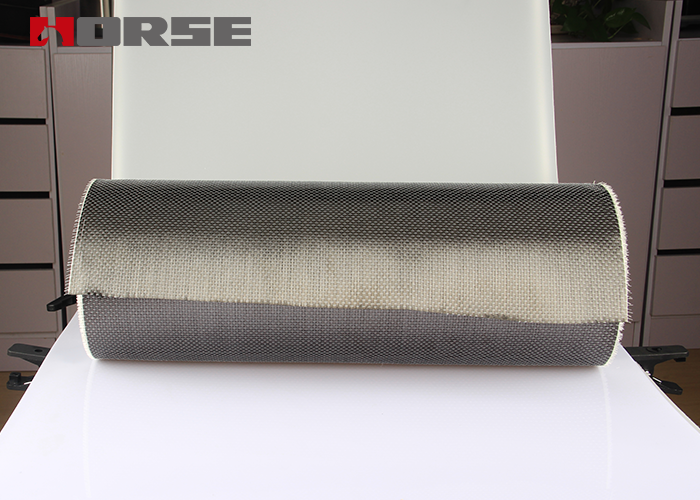

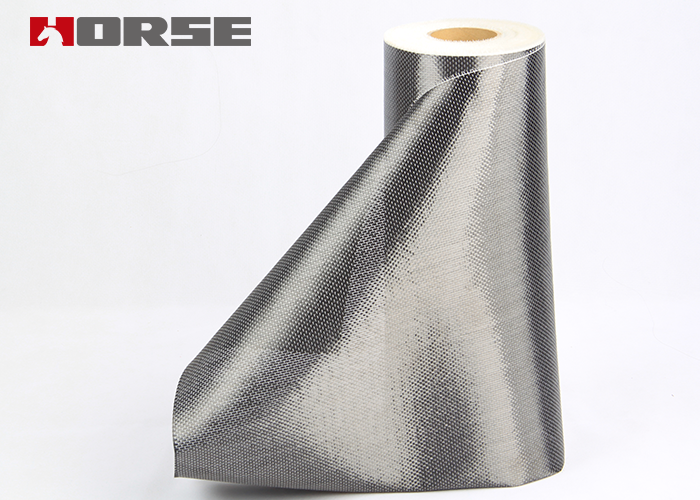

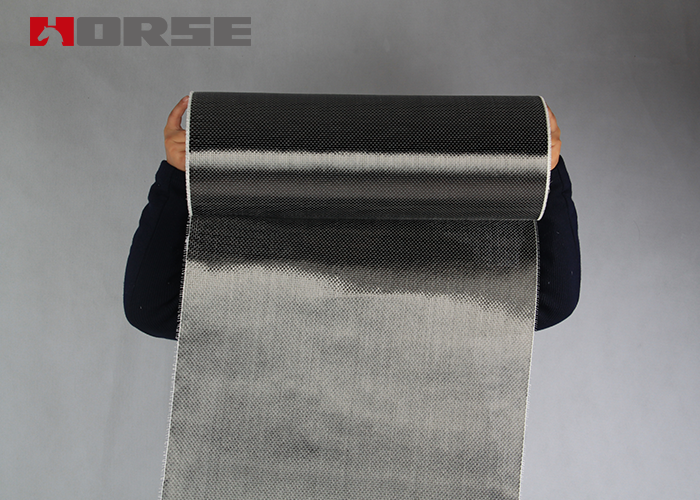

12K UD 300GSM Carbon Fiber Fabric

12K UD Carbon Fiber Fabric

Horse Unidirectional Carbon Fiber Fabric's Data Sheet

HM-20 Carbon Fiber Fabric TDS.pdf

HM-43 Carbon Fiber Fabric TDS.pdf

HM-30 Carbon Fiber Fabric TDS.pdf

HM-60 Carbon Fiber Fabric TDS.pdf

Horse Construction FRP Systems

Horse FRP system.pdf

Horse Construction FRP Systems Video

Carbon fiber strengthening

Carbon Fiber Typical Data

Storage Condition	Store dry at 40°-95° F（4° -35°）
Shelf Life	50 years
Color	Black
Primary Fiber Direction	0°（unidirectional carbon fiber fabric）
Arear Weight	HM-20 unidirectional carbon fiber fabric	200g/㎡ (5.84 oz./sq.yd.)
	HM-23 unidirectional carbon fiber fabric	230g/㎡ (6.72 oz./sq.yd.)
	HM-30 unidirectional carbon fiber fabric	300g/㎡ (8.76 oz./sq.yd.)
	HM-45 unidirectional carbon fiber fabric	450g/㎡ (13.14 oz./sq.yd.)
	HM-53 unidirectional carbon fiber fabric	530g/㎡ (15.48 oz./sq.yd.)
	HM-60 unidirectional carbon fiber fabric	600g/㎡ (17.52 oz./sq.yd.)

Carbon Fiber Typical Fiber Properties

Dry Fiber Typical Properties
Standrad Value of Tensile Strength	4900MPa
Tensile Elastic Modulus	234500MPa
Elongation	1.7%

Laminate Fiber Typical Properties
Standrad Value of Tensile Strength	3800MPa
Tensile Elastic Modulus	234500MPa
Elongation	1.7%
With Concrete	Concrete Damaged: ≥2.5MPa
Densiy	1.8g/cc(0.065lbs.in³）
Norminal Fiber Thickness	HM-20 unidirectional carbon fiber fabric	0.111mm(0.0044in.)
	HM-23 unidirectional carbon fiber fabric	0.128mm(0.0050in.)
	HM-30 unidirectional carbon fiber fabric	0.167mm(0.0065in.)
	HM-45 unidirectional carbon fiber fabric	0.251mm(0.0097in.)
	HM-53unidirectional carbon fiber fabric	0.295mm(0.0114in.)
	HM-60 unidirectional carbon fiber fabric	0.333mm(0.0130in.)

Unidirectional black weaves carbon fiber fabric( bidirectional carbon fiber cloth can be customized by requirements).

Typic width are 10cm, 15cm, 20cm, 25cm, 30cm, 50cm, 60cm.

other width can be customized by requirements.

Shanghai Horse Construction carbon fiber fabric roll length should be 100m/roll.
